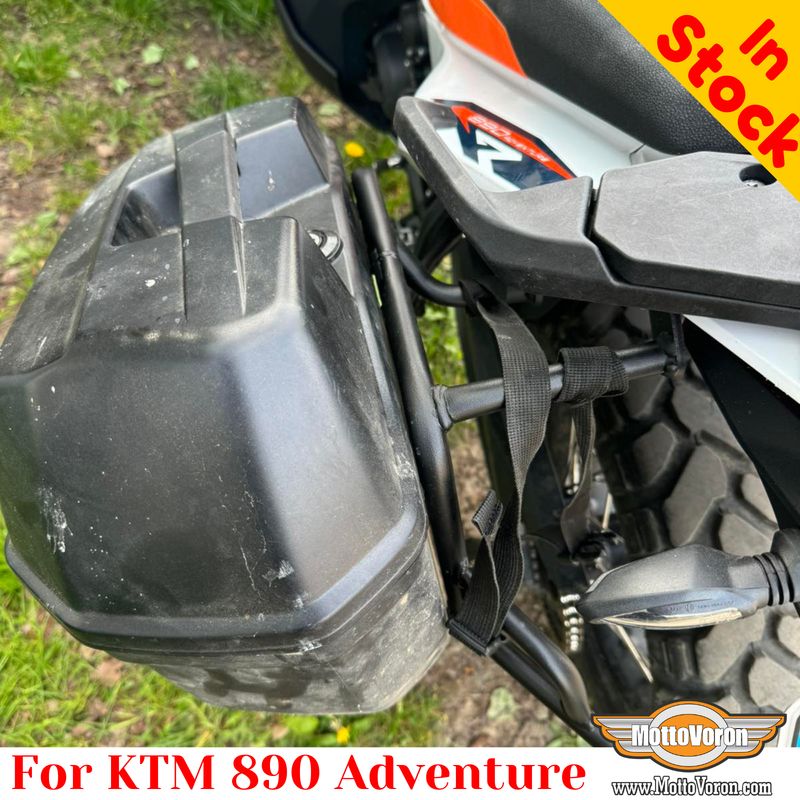

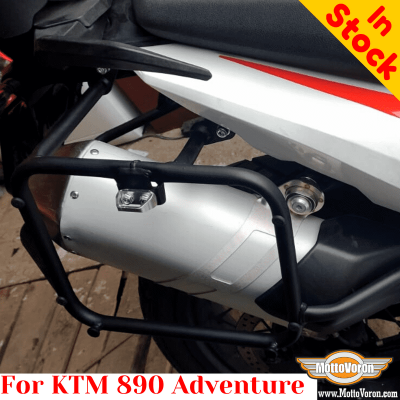

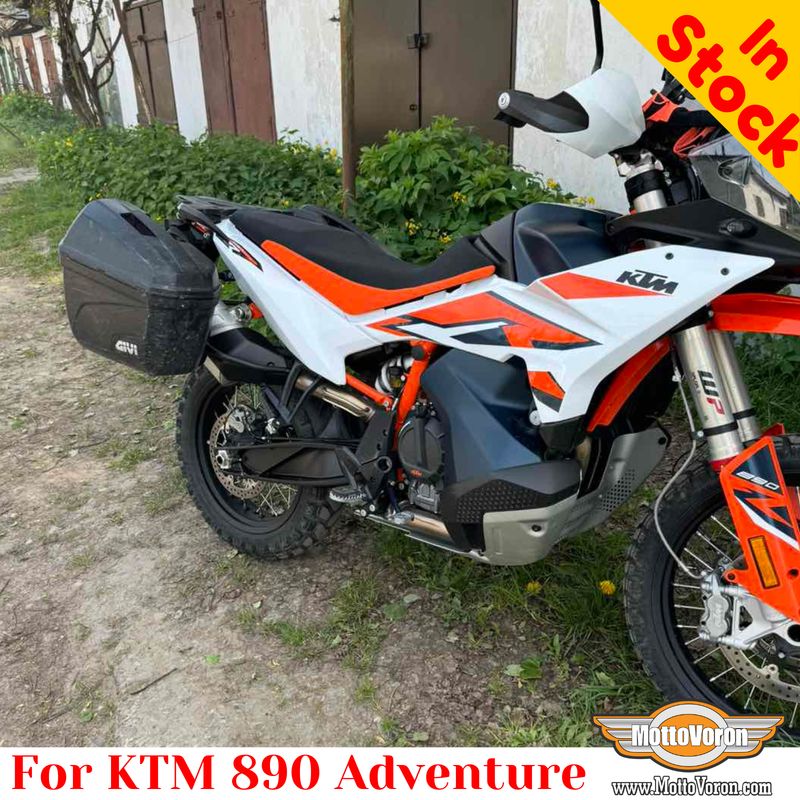

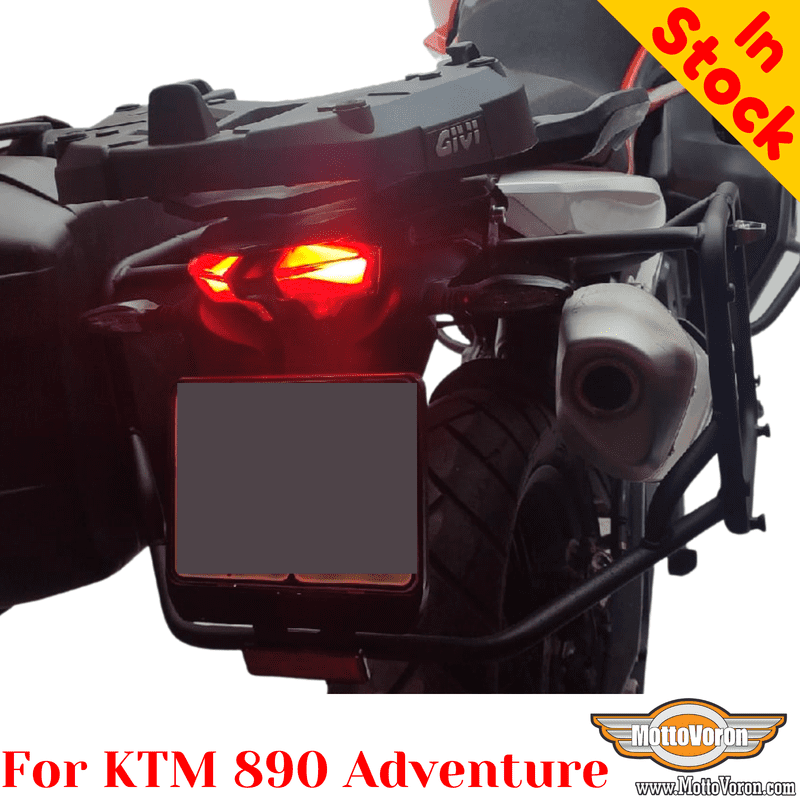

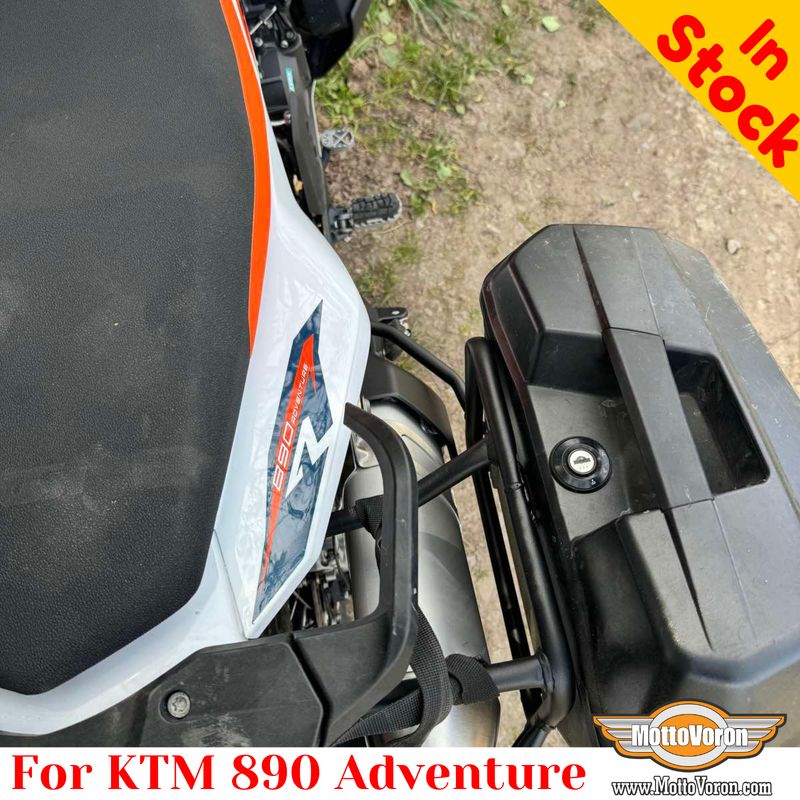

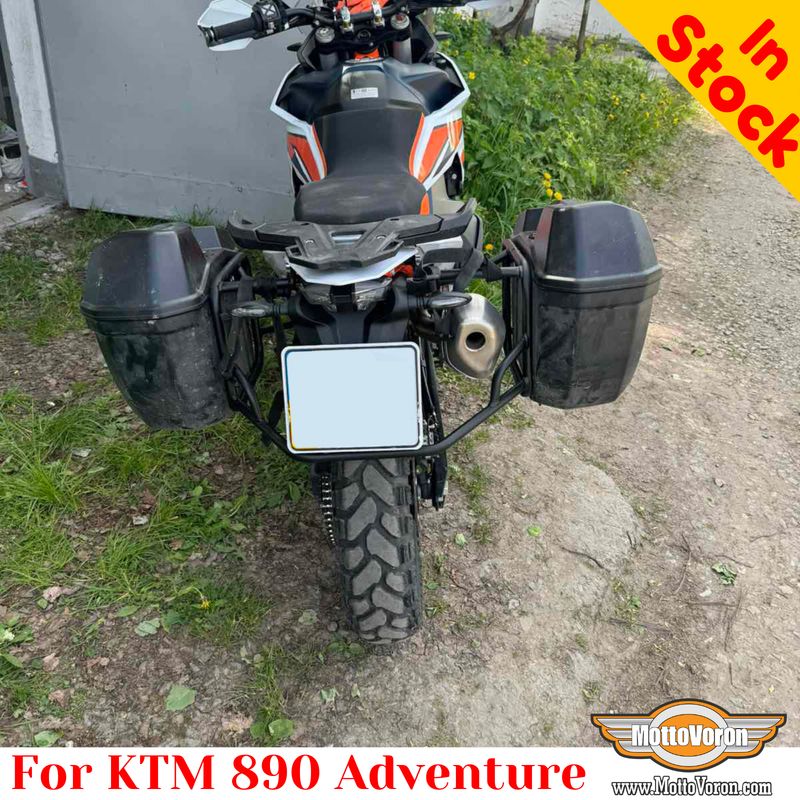

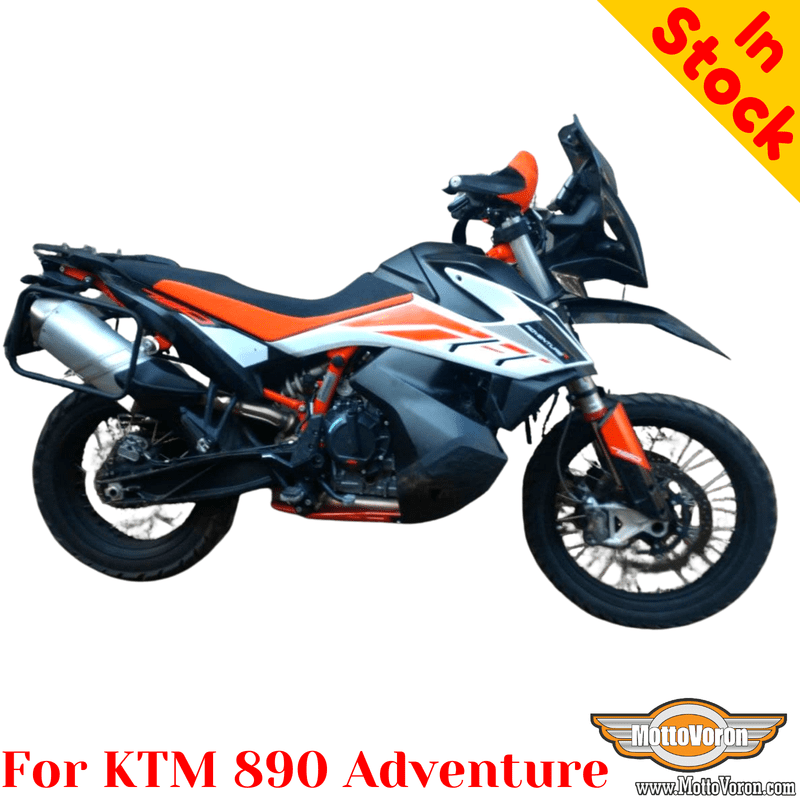

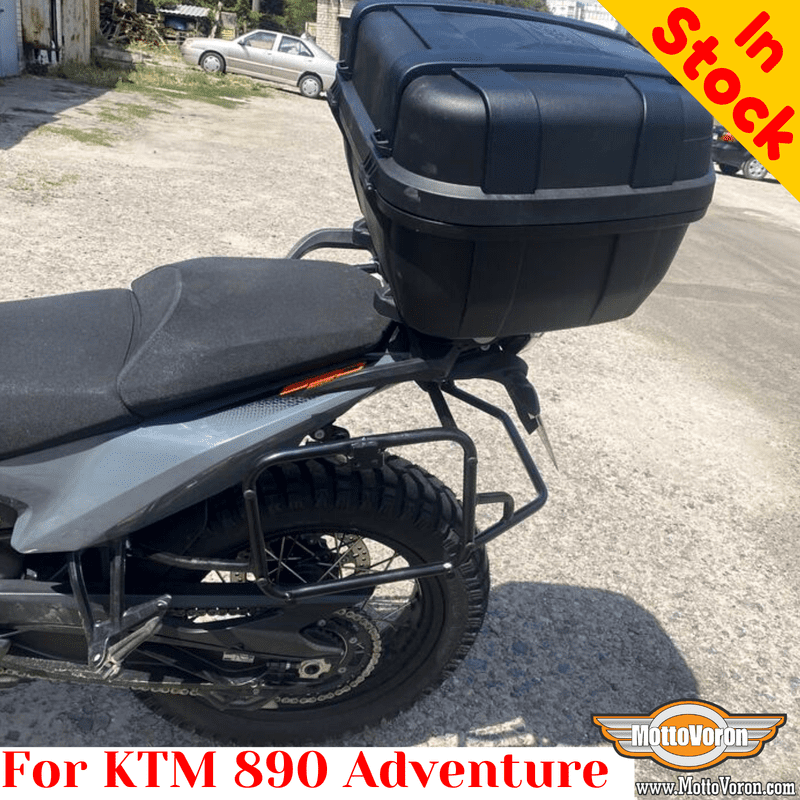

KTM 890 Adventure side carrier pannier rack for Givi / Kappa Monokey cases is:
Whole-welded (monoblock) design allows you not to think about it while traveling and enjoy the ride. It is important that with the luggage system you can take all your things for your ride.
Safety and roadside assistance:

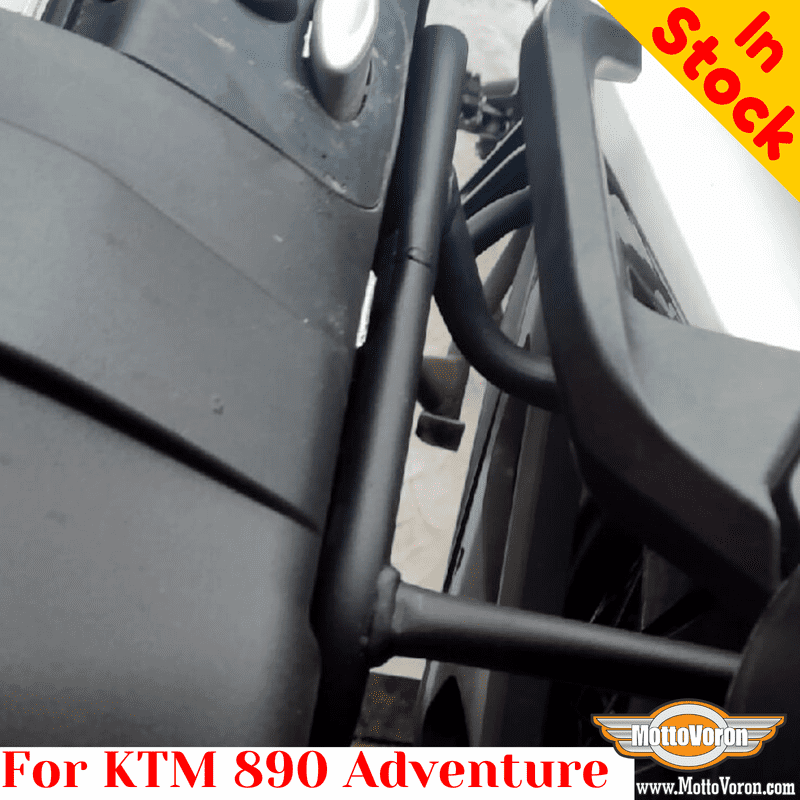

The design of the whole-welded side frames evenly distributes the load and protect the plastic and motorcycle's frame during falls.

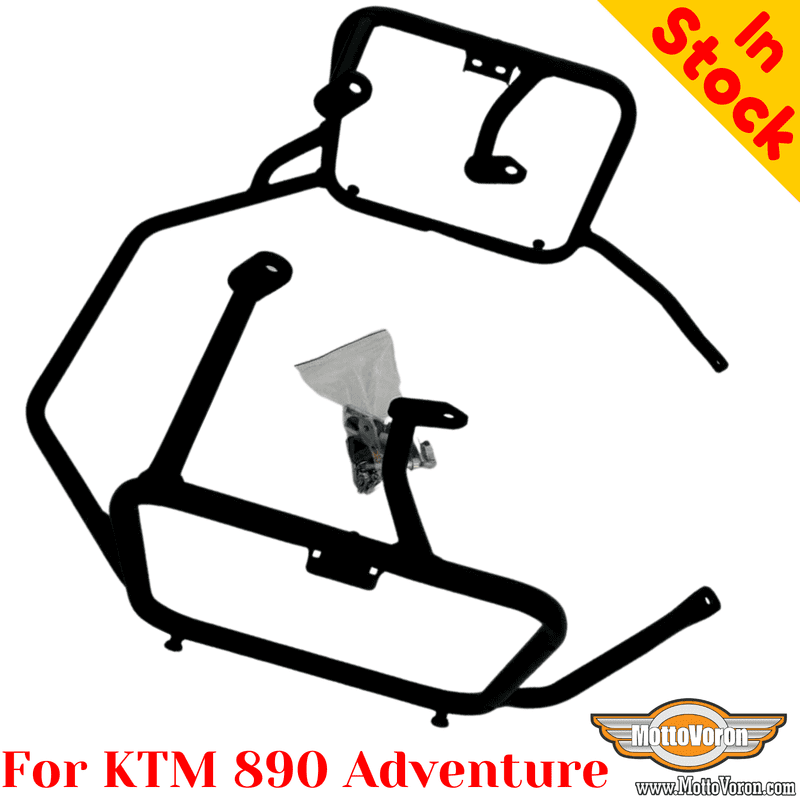

Whole-welded side carriers are made of certified metal pipes of special alloy.
- frame size: 305х215 mm, pipe diameter: 16 mm (Monokey)
- pipe thickness: 1,5 mm
Built-in fitting system for Givi/Kappa Monokey cases.
Our products are coated with durable polymer powder paint with additional wear-resistant layer. Color selection is FREE. The product is available in standard black color. When choosing a different color, the term of production is within 15 working days.
Recommendations for installing KTM 890 Adventure side carriers
Before installation, you need to dismantle the exhaust pipe and license plate.

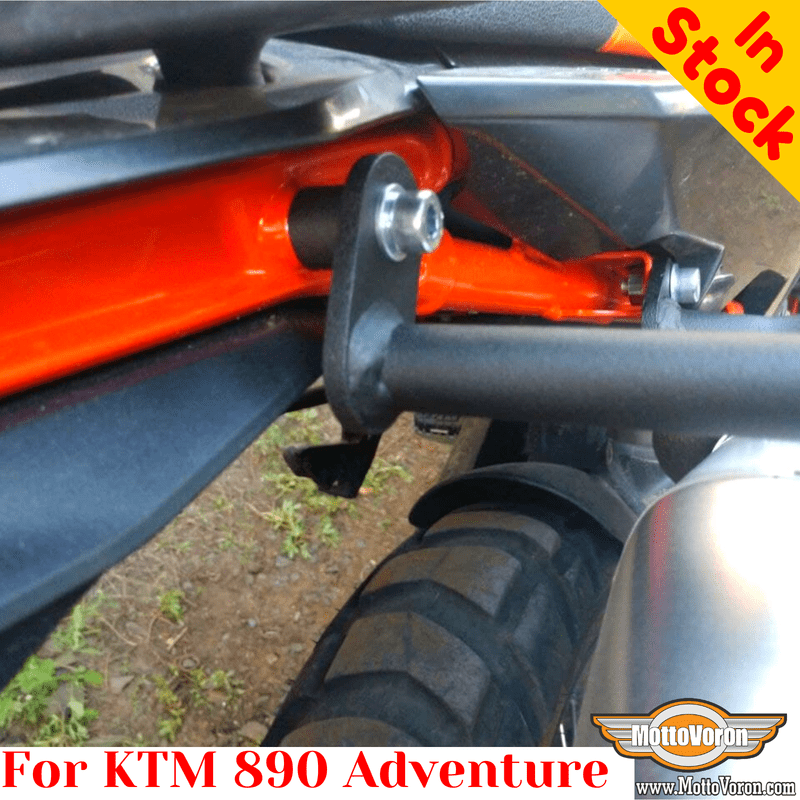

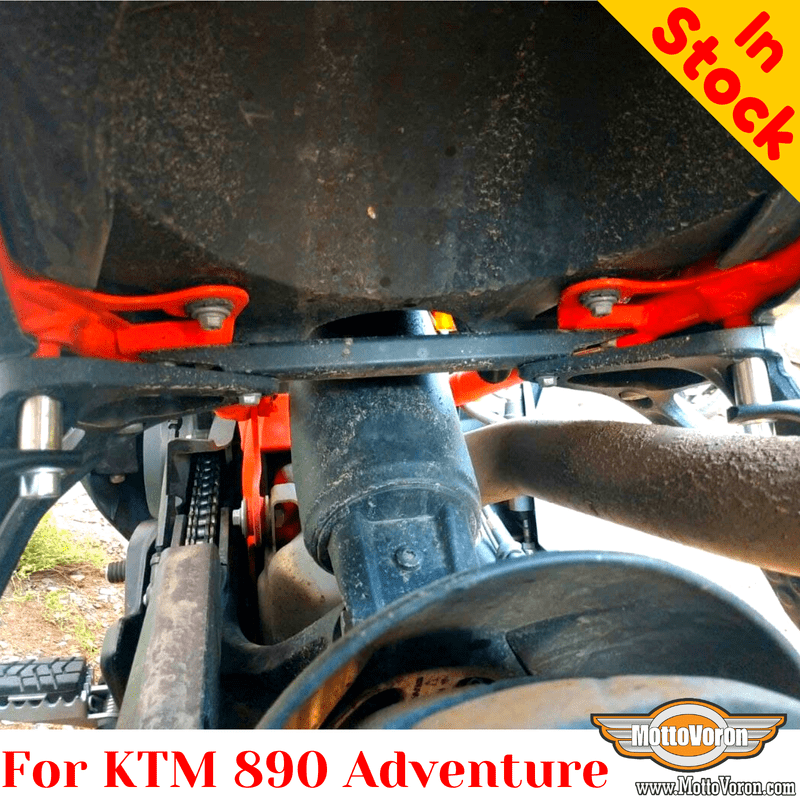

Next, you need to lean the side frames against the motorcycle. Start the installation from the top fixing points. Insert the bolt WITHOUT A BUSHING into the upper fixing points. Insert the long bushings from the kit into the lower mounting points.
Next, insert the bolt into the bushings and tighten EXACTLY along the thread until the bolt head touches the bushing.
Important!!! Do not fully tighten the bolt. You need all the bolts to be just baited.
The next step is to install the bushings in the top fasteners. Alternately, you pull out the bolt and insert the sleeve, then install the bolt back through the sleeve. But don't tighten the bolts. When you have all the bolts with bushings installed, then begin the process of tightening the bolts of all attachment points.
After tightening all the bolts, you need to install the license plate and exhaust pipe back.
General recommendations for installing products from MottoVoron
When you receive your order, make sure that the package with fasteners is included. Until you find them, do not throw away the packaging.
Before installation, make sure that your technical skills and tools are sufficient to complete the process without any problems. Otherwise, it is better to contact a specialized service for help.
When installing all-welded luggage systems and side frames, on most motorcycles, it is necessary to "release" the mounting of the passenger footrest bracket in order to move it.
Installation of protective arcs on some models requires removal of plastic.
A successful installation is when the product is installed on the motorcycle without "tension" and additional metal tension. It is in this case that the product you bought will please you for many years and will protect the motorcycle in case of a possible fall.
Our team is always ready to help with the installation of our products purchased online. If something goes wrong with your installation, it's better to let us know and our specialists will help promptly.
