• SKU:
    MV-1244

160.99 $
In stock

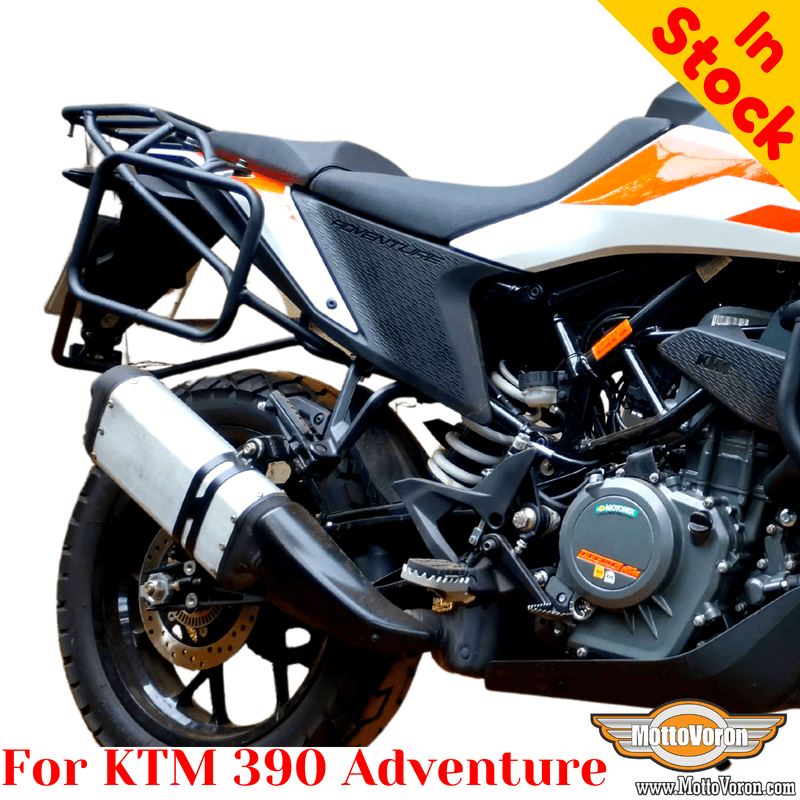

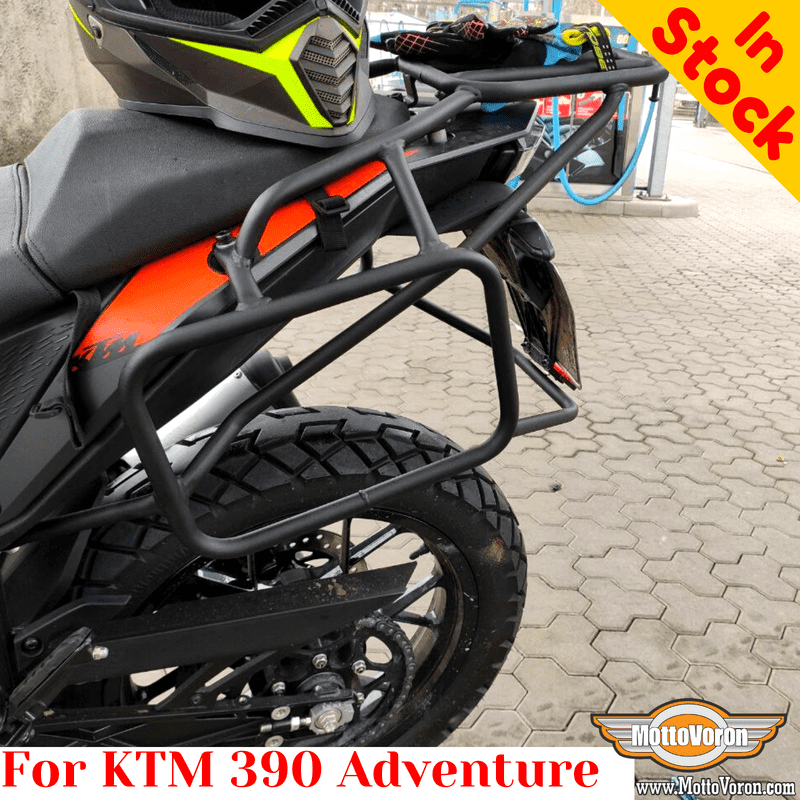

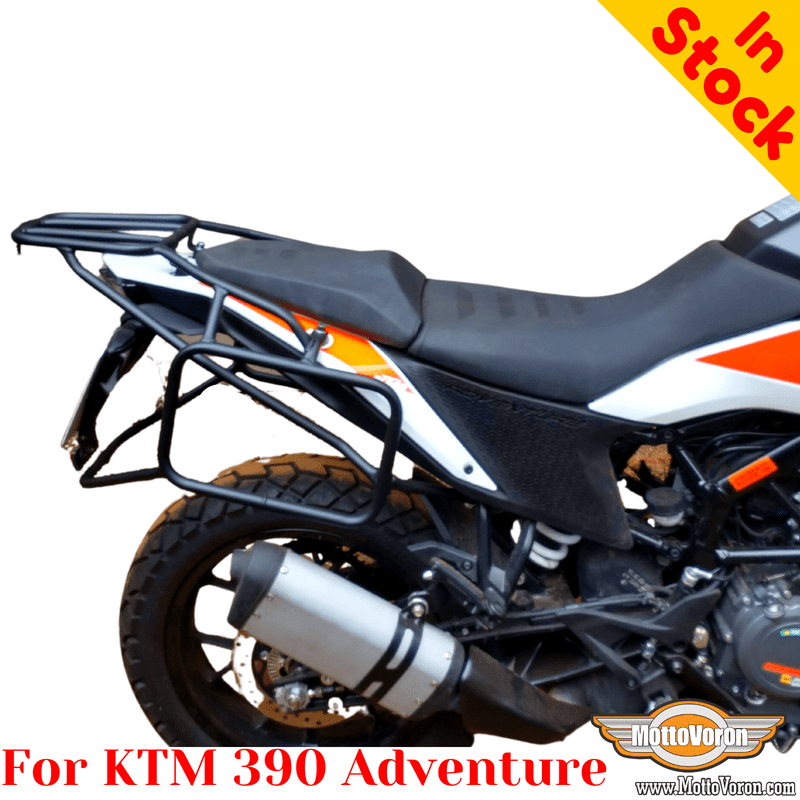

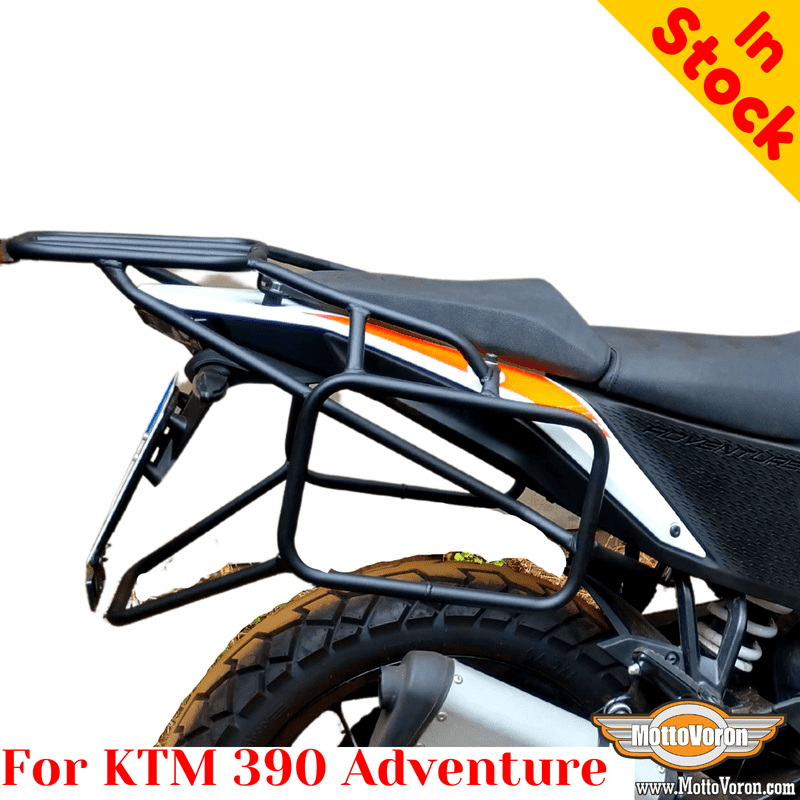

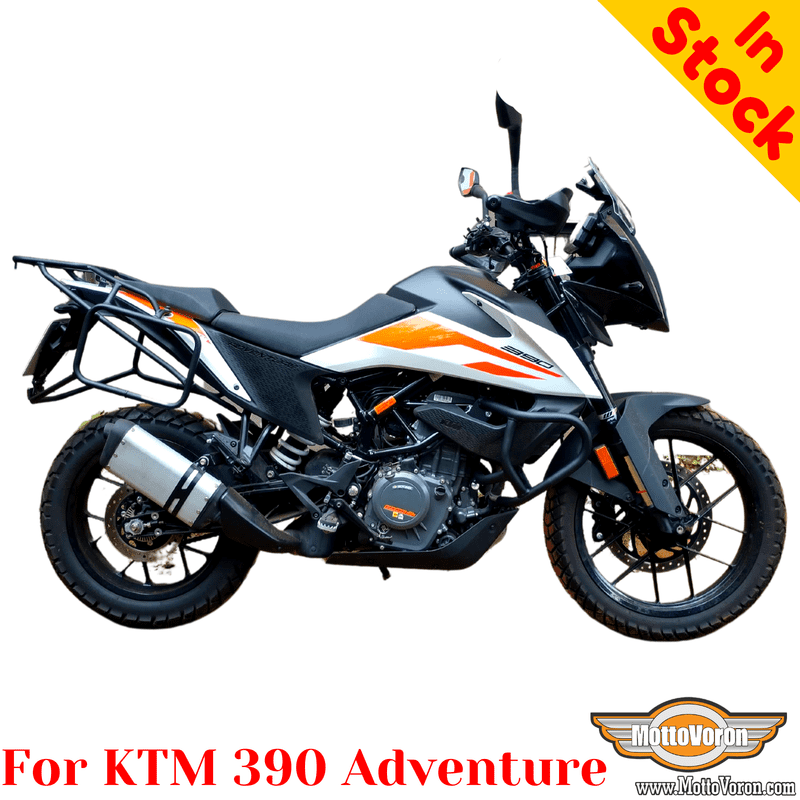

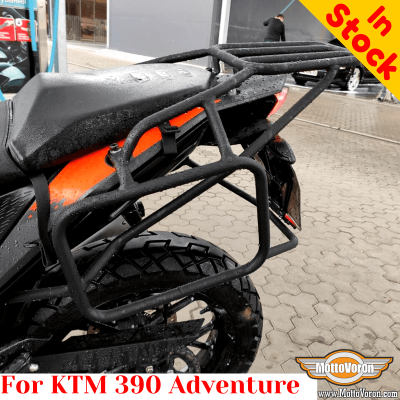

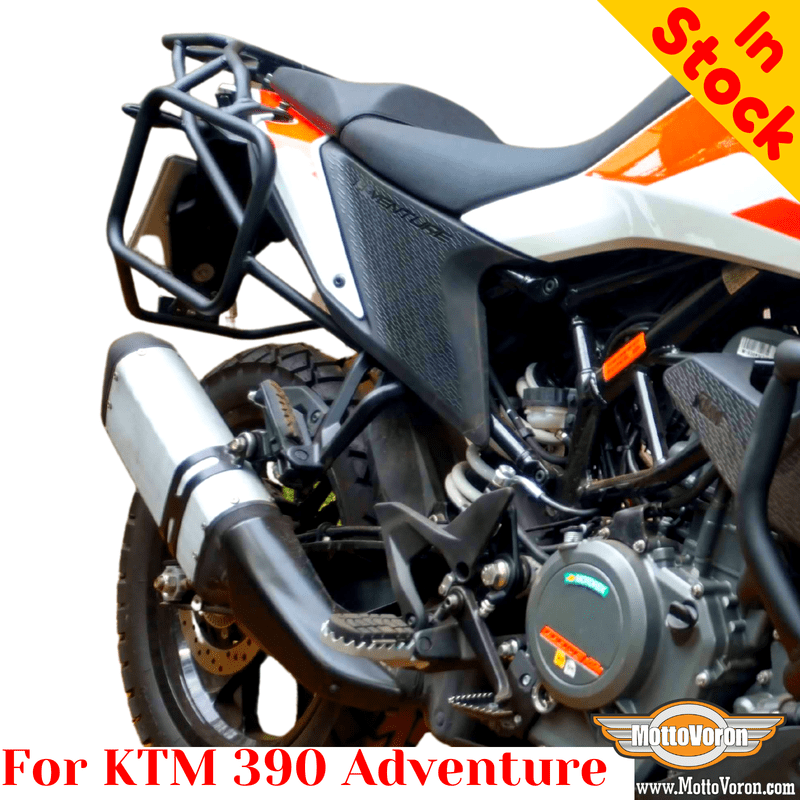

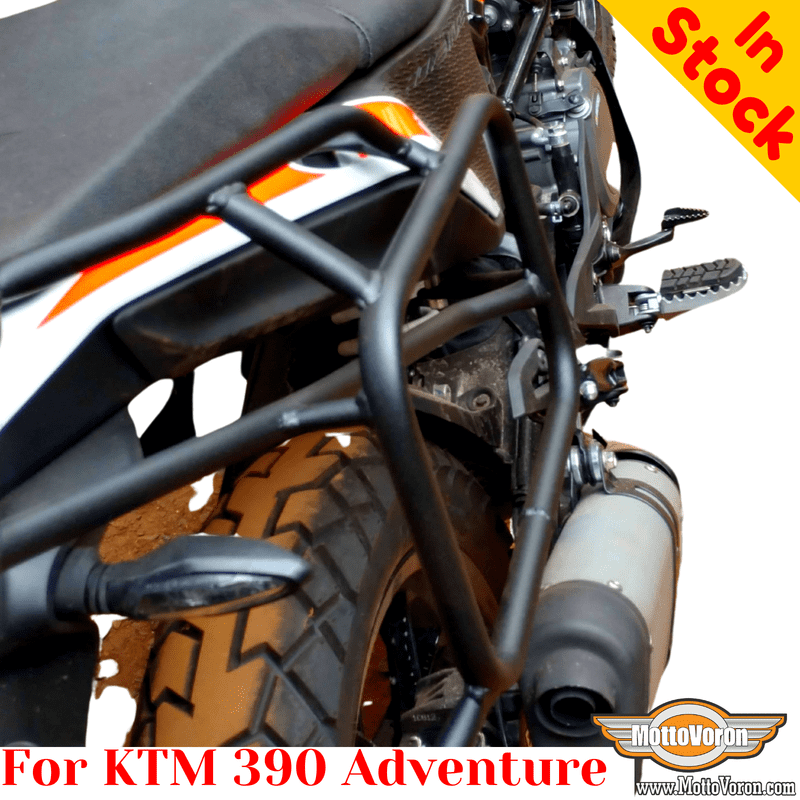

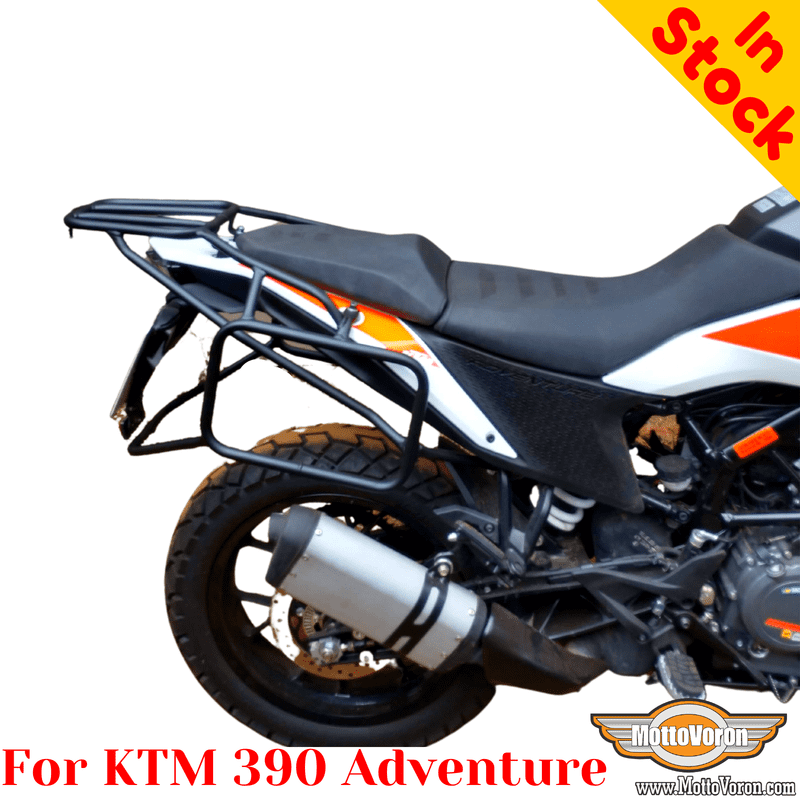

KTM 390 Adventure luggage rack system for bags or aluminum cases is:



Comfort:

Whole-welded (monoblock) design allows you not to think about it while traveling and enjoy the ride. It is important that with the luggage system you can take all your things for your ride.



Safety and roadside assistance:

The design of the luggage rack system evenly distributes the load and protects the plastic and frame of the motorcycle during falls.



Manufacturer:

MottoVoron®



Specifications:

The luggage rack system is made of certified special alloy metal pipes.



Dimensions:

- frame size: 305х215 mm, pipe diameter: 16 mm

                             305х215 mm, pipe diameter: 18 mm

- pipe thickness: 1,5 mm



Painting:

Our products are coated with durable polymer powder paint with additional wear-resistant layer. All items are available in standard black color and are shipped within 3 business days. Production time for other colors (except black) is up to 20 working days.

KTM 390 Adventure luggage rack system installation and review


Installing a luggage system on a KTM 390 Adventure

The kit includes 6 bushings and 6 bolts.

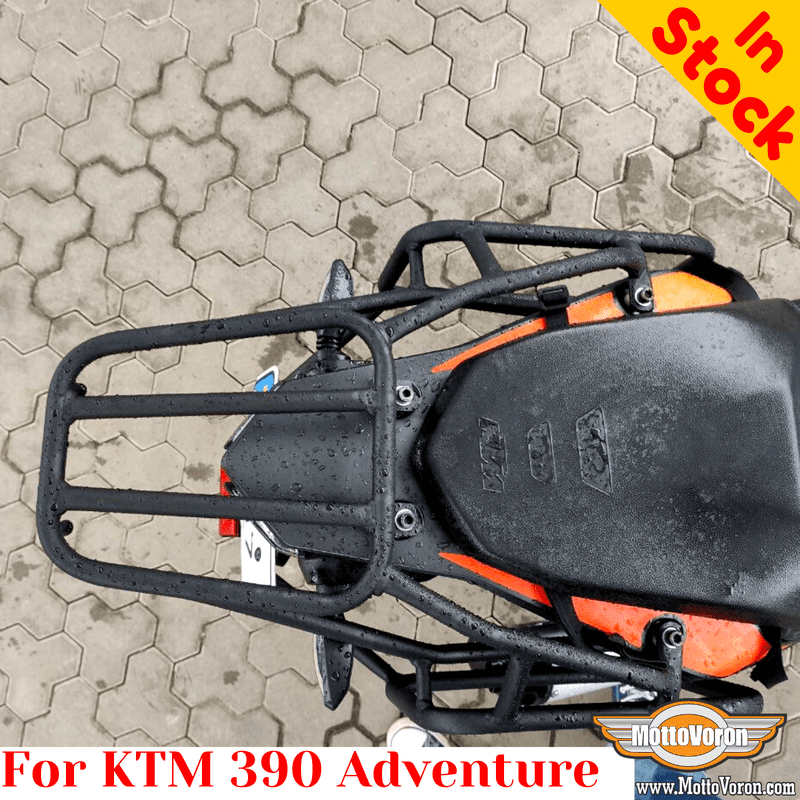

12 and 15 mm bushings are installed from above under the seat, in place of standard passenger handles. The 15mm bushings are located at the back, the 12mm bushings are located in the holes in the front.


Please note that if you confuse the installation sequence of the bushings, the luggage system will be installed with a large interference fit. Because the product will be in constant tension, it will not last long and may crack under loads.

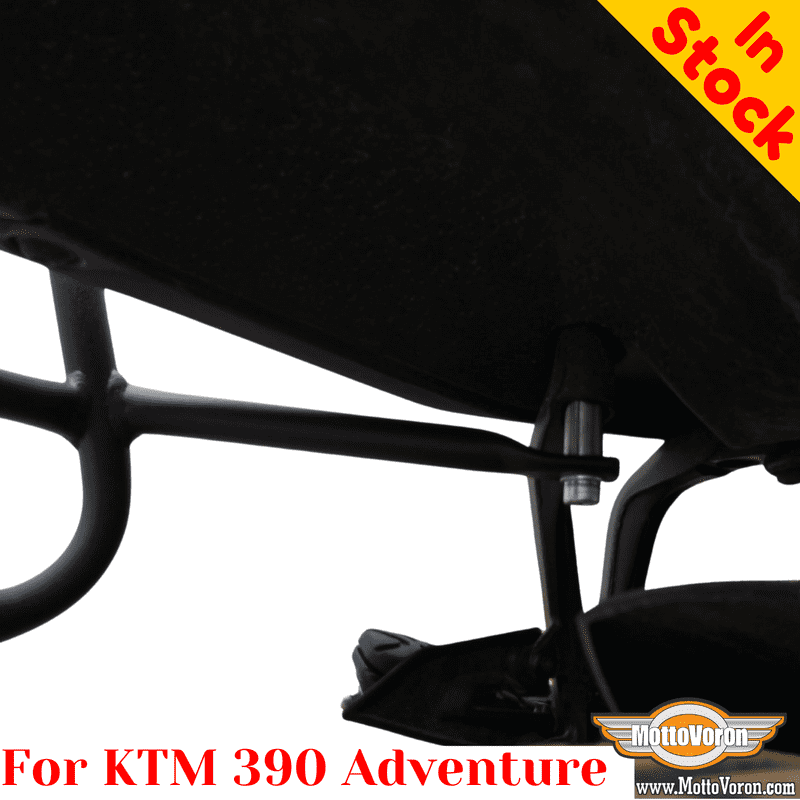

25 mm bushings are installed from below, as shown in the photo:

General recommendations for installing products from MottoVoron


When you receive your order, make sure that the package with fasteners is included. Until you find them, do not throw away the packaging.


Before installation, make sure that your technical skills and tools are sufficient to complete the process without any problems. Otherwise, it is better to contact a specialized service for help.


When installing all-welded luggage systems and side frames, on most motorcycles, it is necessary to "release" the mounting of the passenger footrest bracket in order to move it.


Installation of protective arcs on some models requires removal of plastic.


A successful installation is when the product is installed on the motorcycle without "tension" and additional metal tension. It is in this case that the product you bought will please you for many years and will protect the motorcycle in case of a possible fall.


Our team is always ready to help with the installation of our products purchased online. If something goes wrong with your installation, it's better to let us know and our specialists will help promptly.
